Setting Up Repository And Pipeline

Overview

In this section of the guide, you will learn how to set up a Jenkins pipeline for the OWASP Juice Shop project, integrating it with Gitea for version control, SonarQube for static code analysis, and Docker for containerization. The process includes cloning the codebase, configuring access tokens in Gitea, installing necessary Jenkins plugins, creating a Jenkins pipeline, and setting up webhooks and SSH keys for secure communication between your systems. By the end of this guide, your pipeline will be fully automated to handle code quality checks, security scans, and deployments.

Prerequisites

Before starting, ensure that you have the following:

• Access to a Gitea instance
• Jenkins set up with required plugins (e.g., Git, SonarQube, Docker, etc.)
• A SonarQube instance
• Docker installed on your machine

Step 1: Clone the Codebase

On your local machine, clone the juice-shop-sonarscanning repository:

git clone https://github.com/The-DevSec-Blueprint/juice-shop-sonarscanning.git

Step 2: Create a New Project in Gitea

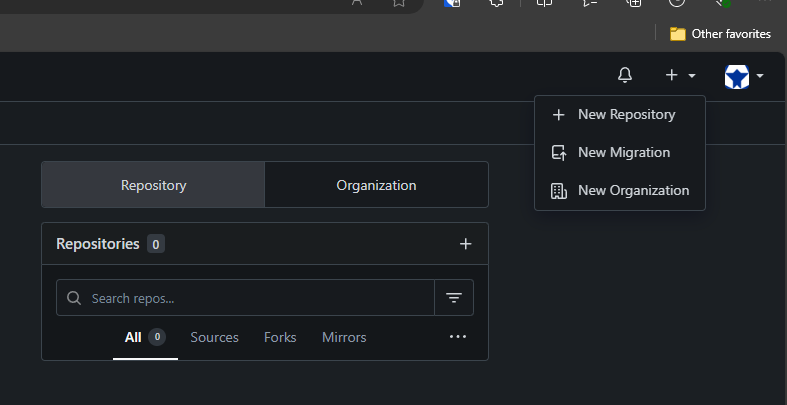

1. Log into your Gitea instance and navigate to create a new repository.

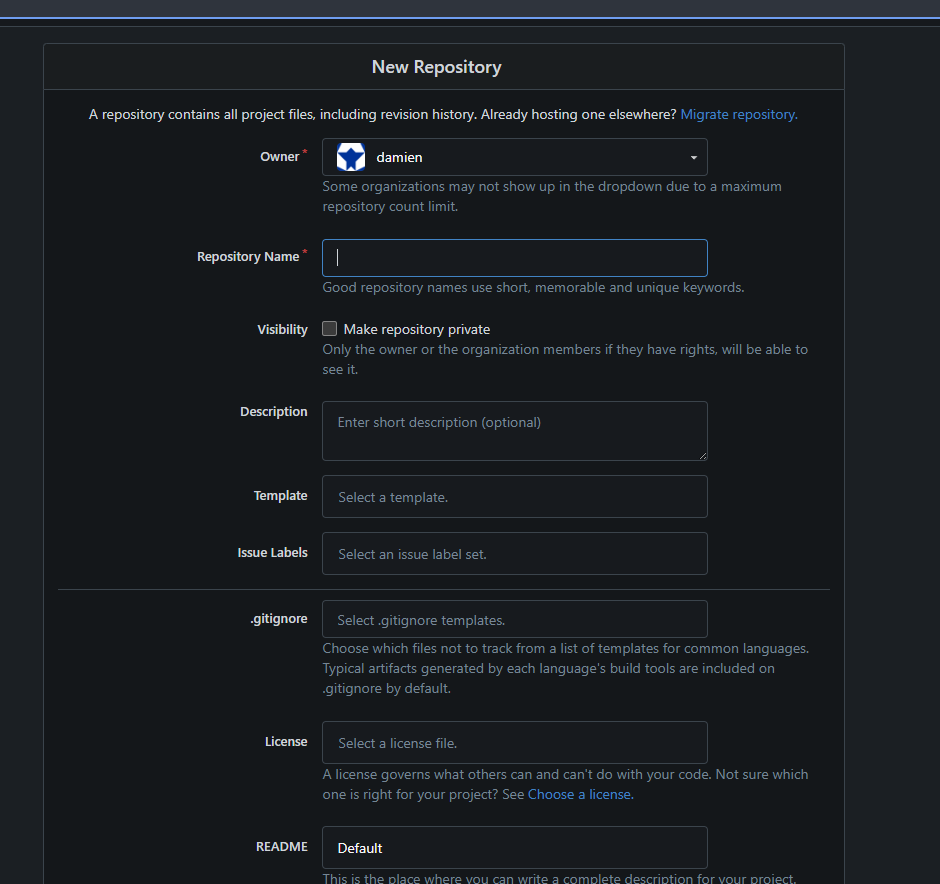

2. Fill out the necessary information:

   • Repository name: owasp-juice-shop
   • Visibility: public
   • Description: (Optional)
   • Default branch: master



3. Click on the Create Repository button.

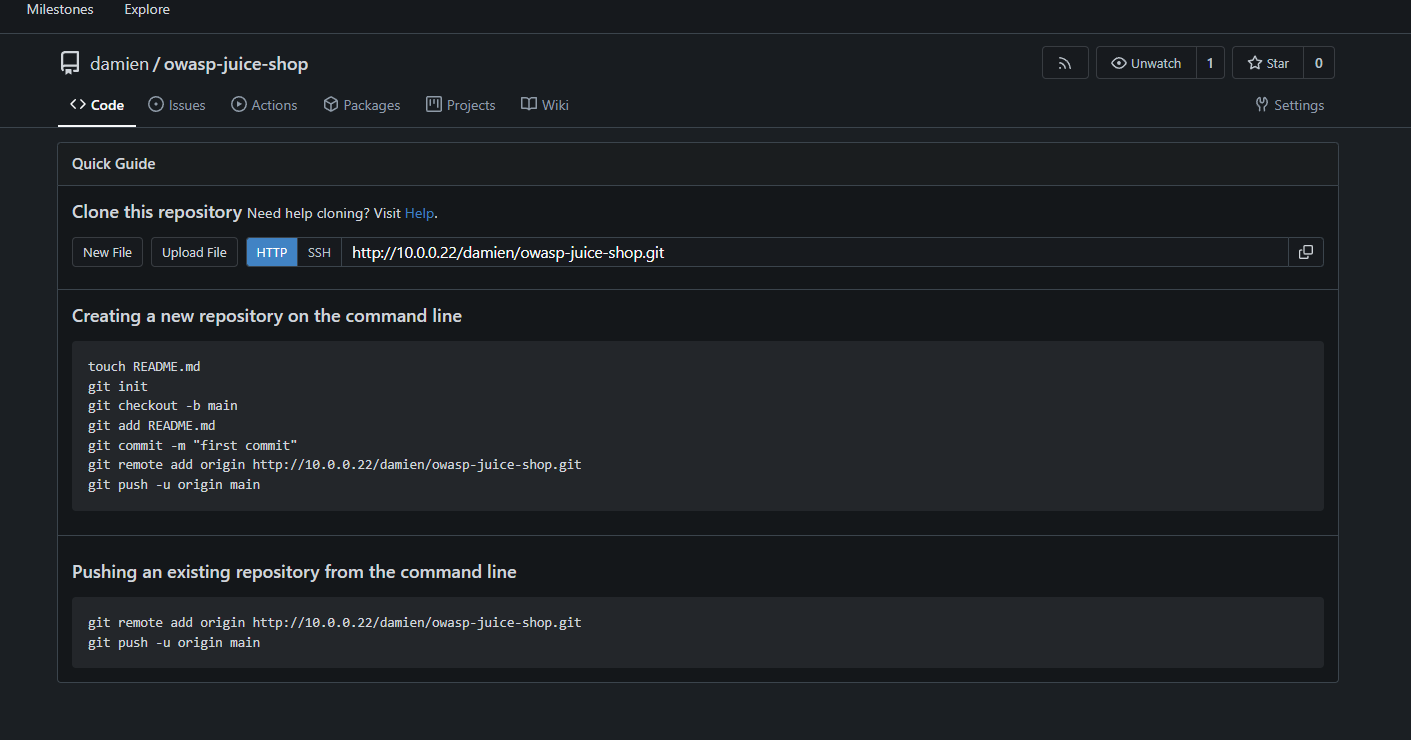

4. Confirm that the repository has been created successfully.



Step 3: Point the Local Repository to Gitea

In your local juice-shop-sonarscanning directory, update the git origin to point to your new Gitea repository:

cd juice-shop-sonarscanning/
git remote remove origin
git remote add origin http://<your_gitea_server_ip>/<your_username>/owasp-juice-shop.git
git push -u origin master

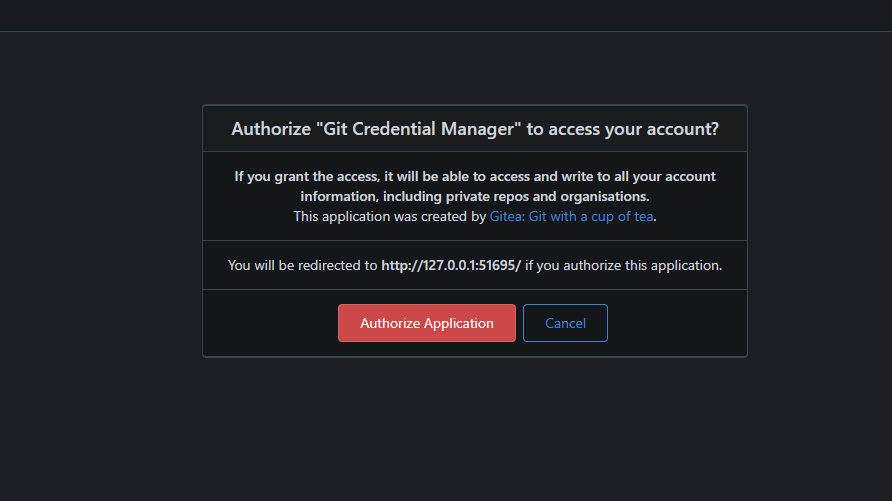

Step 4: Authorize Your Application

After pushing your code, Gitea might prompt you to authorize your application.

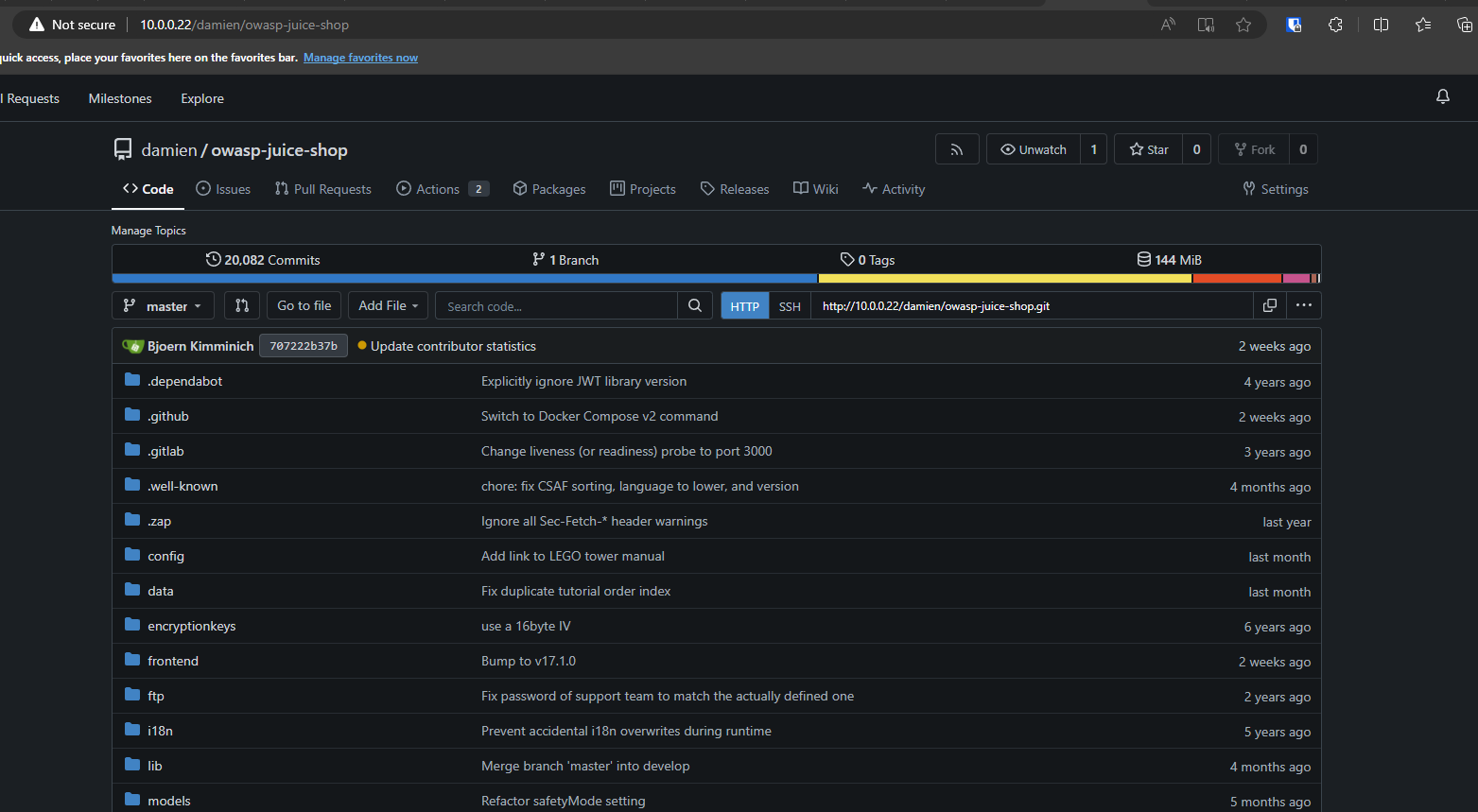

Step 5: Confirm the Changes

Ensure that your changes have been pushed to the Gitea repository.

Step 6: Remove GitHub Workflows Directory

Remove the GitHub workflows directory from the repository:

rm -rf .github/workflows
git add .
git commit -m "removing workflows"
git push

Step 7: Create Jenkinsfile for CI/CD Pipeline

Create a Jenkinsfile in the root directory of your repository with the following content:

pipeline {
    agent any

    environment {
       SONAR_TOKEN = credentials('sonar-analysis')
       SONAR_PROJECT_KEY = 'owasp-juice-shop'
       DOCKER_IMAGE_NAME = 'owasp-juice-shop'
       NEXUS_DOCKER_REGISTRY = '<your_dsb_hub_ip_address>:8082'
       NEXUS_DOCKER_PUSH_INDEX = '<your_dsb_hub_ip_address>:8083'
       NEXUS_DOCKER_PUSH_PATH = 'repository/docker-host'
    }

    stages {
        stage('Clone') {
            steps {
                checkout scmGit(branches: [[name: '*/master']], extensions: [], userRemoteConfigs: [[credentialsId: 'Gitea PAT', url: 'http://<your_dsb_hub_ip_address>/<your_username>/owasp-juice-shop.git']])
            }
        }
        stage('Build') {
            steps {
                sh 'docker build -t ${DOCKER_IMAGE_NAME}:${BUILD_NUMBER} .'
            }
        }
        stage('Security Scan'){
            parallel {
                stage('Sonar Scan') {
                    steps {
                        script {
                            try{
                                withSonarQubeEnv(installationName: 'Sonar Server', credentialsId: 'sonar-analysis') {
                                    sh '''
                                    docker run --rm \
                                    -e SONAR_HOST_URL="${SONAR_HOST_URL}" \
                                    -e SONAR_TOKEN="${SONAR_TOKEN}" \
                                    -v "$(pwd):/usr/src" \
                                    sonarsource/sonar-scanner-cli \
                                    -Dsonar.projectKey="${SONAR_PROJECT_KEY}" \
                                    -Dsonar.qualitygate.wait=true \
                                    -Dsonar.sources=.
                                    '''
                                }
                            } catch (Exception e) {
                                // Handle the error
                                echo "Quality Qate check has failed: ${e}"
                                currentBuild.result = 'UNSTABLE' // Mark the build as unstable instead of failing
                            }
                        }
                    }
                }
                stage('Security Scan') {
                    steps {
                        sh '''
                            trivy image --severity HIGH,CRITICAL ${DOCKER_IMAGE_NAME}:${BUILD_NUMBER}
                        '''
                    }
                }
            }
        }
        stage('Publish') {
            steps {
                script {
                    withCredentials([usernamePassword(credentialsId: 'nexus', passwordVariable: 'NEXUS_PASSWORD', usernameVariable: 'NEXUS_USERNAME')]) {
                        sh """
                        docker login ${NEXUS_DOCKER_PUSH_INDEX} -u $NEXUS_USERNAME -p $NEXUS_PASSWORD
                        docker tag ${DOCKER_IMAGE_NAME}:${BUILD_NUMBER} ${NEXUS_DOCKER_PUSH_INDEX}/${NEXUS_DOCKER_PUSH_PATH}/${DOCKER_IMAGE_NAME}:latest
                        docker push ${NEXUS_DOCKER_PUSH_INDEX}/${NEXUS_DOCKER_PUSH_PATH}/${DOCKER_IMAGE_NAME}:latest
                        """
                    }
                }
            }
        }
        stage('Deploy') {
            agent { label 'dsb-node-01' }
            steps {
                script {
                        echo 'Deploying to DSB Node 01'
                        // Port 3000 is already in use, use 6000 for this application
                        sh '''
                        docker pull ${NEXUS_DOCKER_PUSH_INDEX}/${NEXUS_DOCKER_PUSH_PATH}/${DOCKER_IMAGE_NAME}:latest
                        docker stop ${DOCKER_IMAGE_NAME} || true
                        docker rm ${DOCKER_IMAGE_NAME} || true
                        docker run -d --name ${DOCKER_IMAGE_NAME} -p 8084:3000 ${NEXUS_DOCKER_PUSH_INDEX}/${NEXUS_DOCKER_PUSH_PATH}/${DOCKER_IMAGE_NAME}:latest
                        '''
                }
            }
        }
    }
    post {
        always {
            cleanWs()
        }
    }
}

This pipeline performs the following steps:

1. Clone the Repository: Pulls the owasp-juice-shop project from a Gitea repository.
2. Build the Application: Builds a Docker image of the application and tags it with the build number.
3. Run Security Scans:
   • SonarQube: Analyzes code quality and enforces a quality gate.
   • Trivy: Scans the Docker image for vulnerabilities (HIGH and CRITICAL).
4. Publish to Nexus: Tags and pushes the built Docker image to a Nexus Docker registry.
5. Deploy: Pulls the latest Docker image from Nexus and deploys it to a specific server, replacing any existing instance.
6. Cleanup: Cleans up the workspace after the build.

This ensures that the application is built, scanned, pushed to the registry, and deployed securely and automatically.

Conclusion

By following these steps, you've successfully set up the OWASP Juice Shop project with Sonar Scanning on Gitea and Jenkins. Your CI/CD pipeline is now ready to ensure code quality and security throughout the development process.
