Jenkins

Overview​

This installation happens on the dsb-hub.

According to Jenkins User Documentation, Jenkins is a self-contained, open source automation server which can be used to automate all sorts of tasks related to building, testing, and delivering or deploying software. It's a CI/CD platform.

Prerequisites​

  1. Install Java

Before installing Jenkins, ensure that Java is installed on your system:

  • Update your package manager and install Java:

    sudo apt update
    sudo apt install fontconfig openjdk-17-jre

Installation Steps​

  1. Configure the Package Manager and Install Jenkins

  • Add Jenkins to your package manager by downloading and installing the Jenkins key:

    sudo wget -O /usr/share/keyrings/jenkins-keyring.asc https://pkg.jenkins.io/debian-stable/jenkins.io-2023.key

  • Add the Jenkins repository to your sources list:

    echo "deb [signed-by=/usr/share/keyrings/jenkins-keyring.asc] https://pkg.jenkins.io/debian-stable binary/" | sudo tee /etc/apt/sources.list.d/jenkins.list > /dev/null

  • Update your package list and install Jenkins:

    sudo apt-get update
    sudo apt-get install jenkins
  1. Enable and Start Jenkins

  • Enable Jenkins to start on boot:

    sudo systemctl enable jenkins

  • Start Jenkins:

    sudo systemctl start jenkins
  1. Verify Jenkins is Running

  • Check the status of Jenkins to ensure it's active:

    sudo systemctl status jenkins

  • You should see output similar to the following if Jenkins is up and running:

    â—Ź jenkins.service - Jenkins Continuous Integration Server
       Loaded: loaded (/usr/lib/systemd/system/jenkins.service; enabled; preset: enabled)
       Active: active (running) since [DATE]; [TIME] ago
       Main PID: 9188 (java)

Configuration Steps​

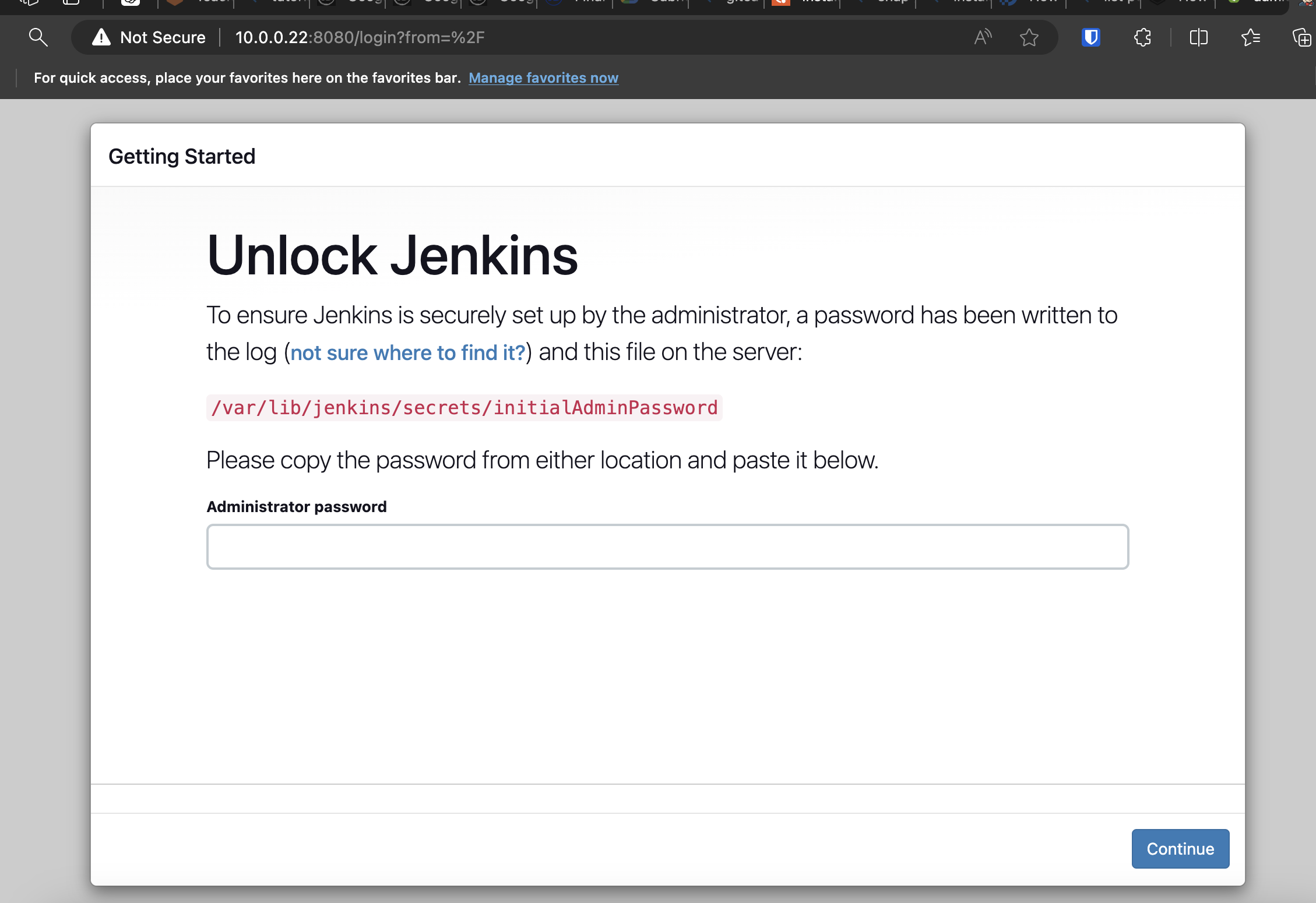

  1. Access Jenkins via Web Browser

  • Open your web browser and go to:

    http://your_ip:8080

  • You should see the Jenkins setup screen.

    Jenkins Setup

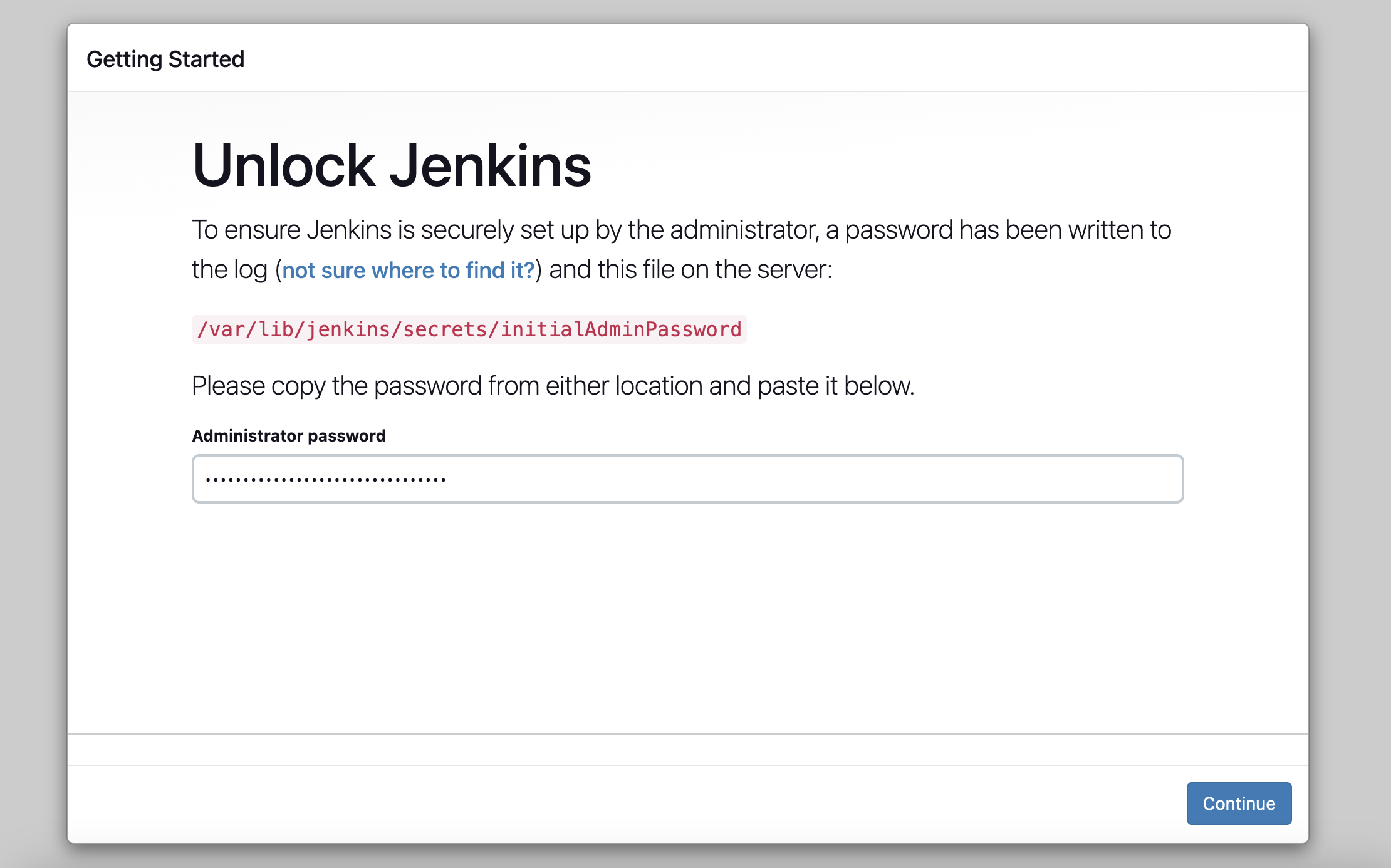

  1. Retrieve the Initial Admin Password

  • To proceed with the setup, you will need the initial admin password. Retrieve it by running the following command on your server:

    sudo cat /var/lib/jenkins/secrets/initialAdminPassword

  • Copy the password and enter it in the password box on the web interface.

    Initial Admin Password

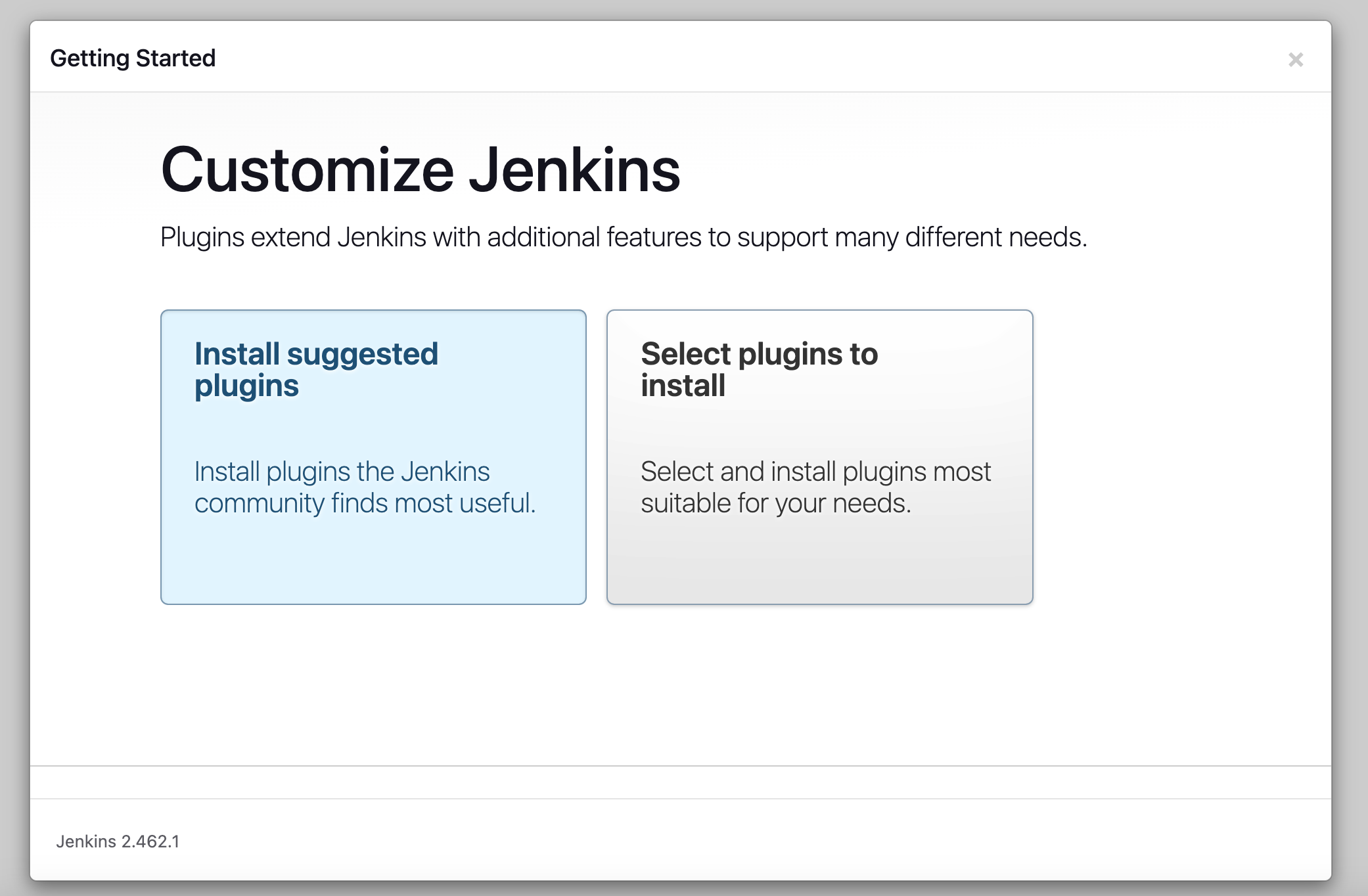

  1. Install Suggested Plugins

  • After entering the admin password, click Install suggested plugins and allow Jenkins to install the necessary plugins.

    Install Plugins

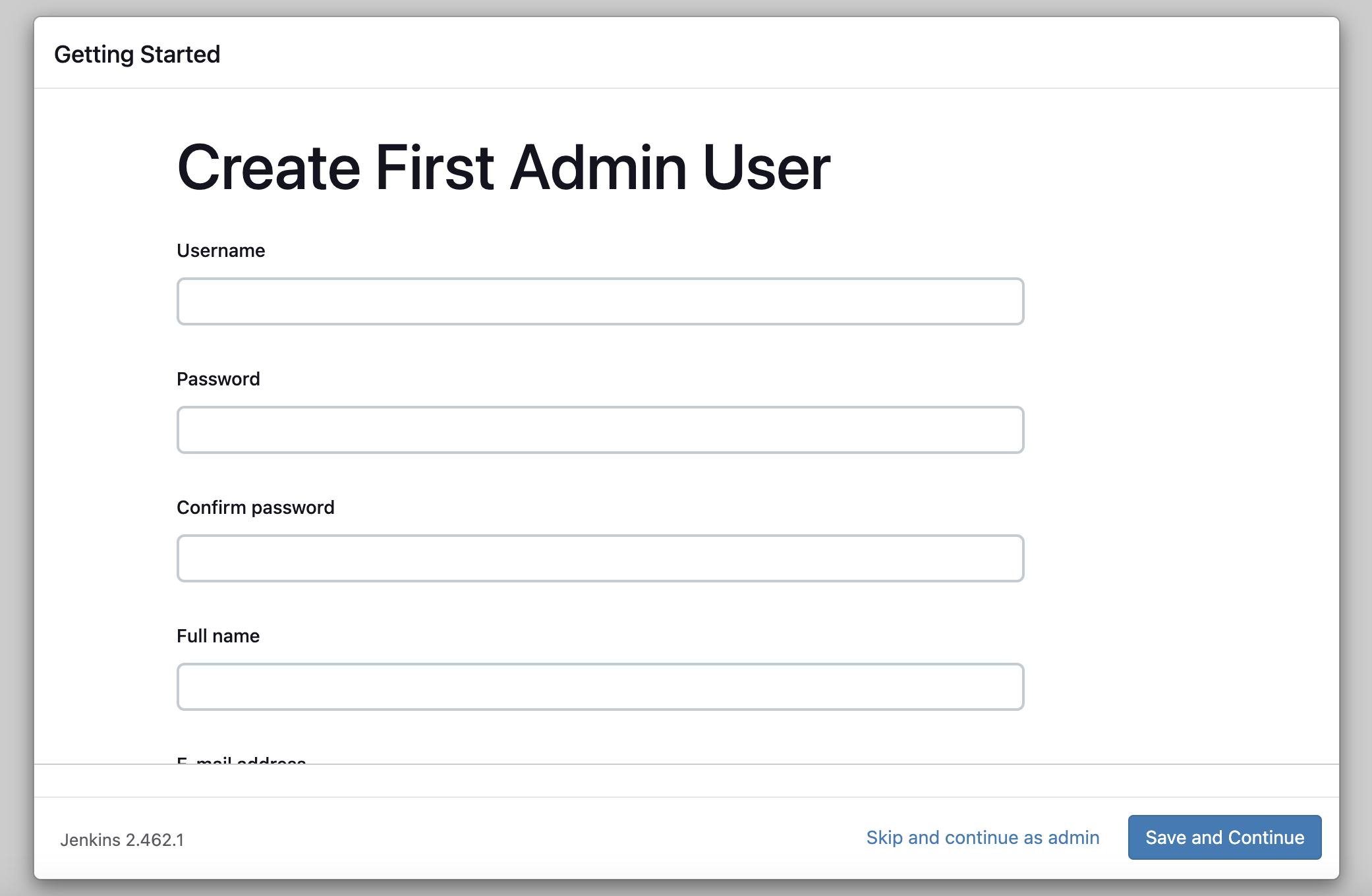

  1. Set Up Your Admin Account

  • After the plugins are installed, you’ll be prompted to set up your admin account. Enter your IP details and set up your Jenkins instance.

    Admin Setup

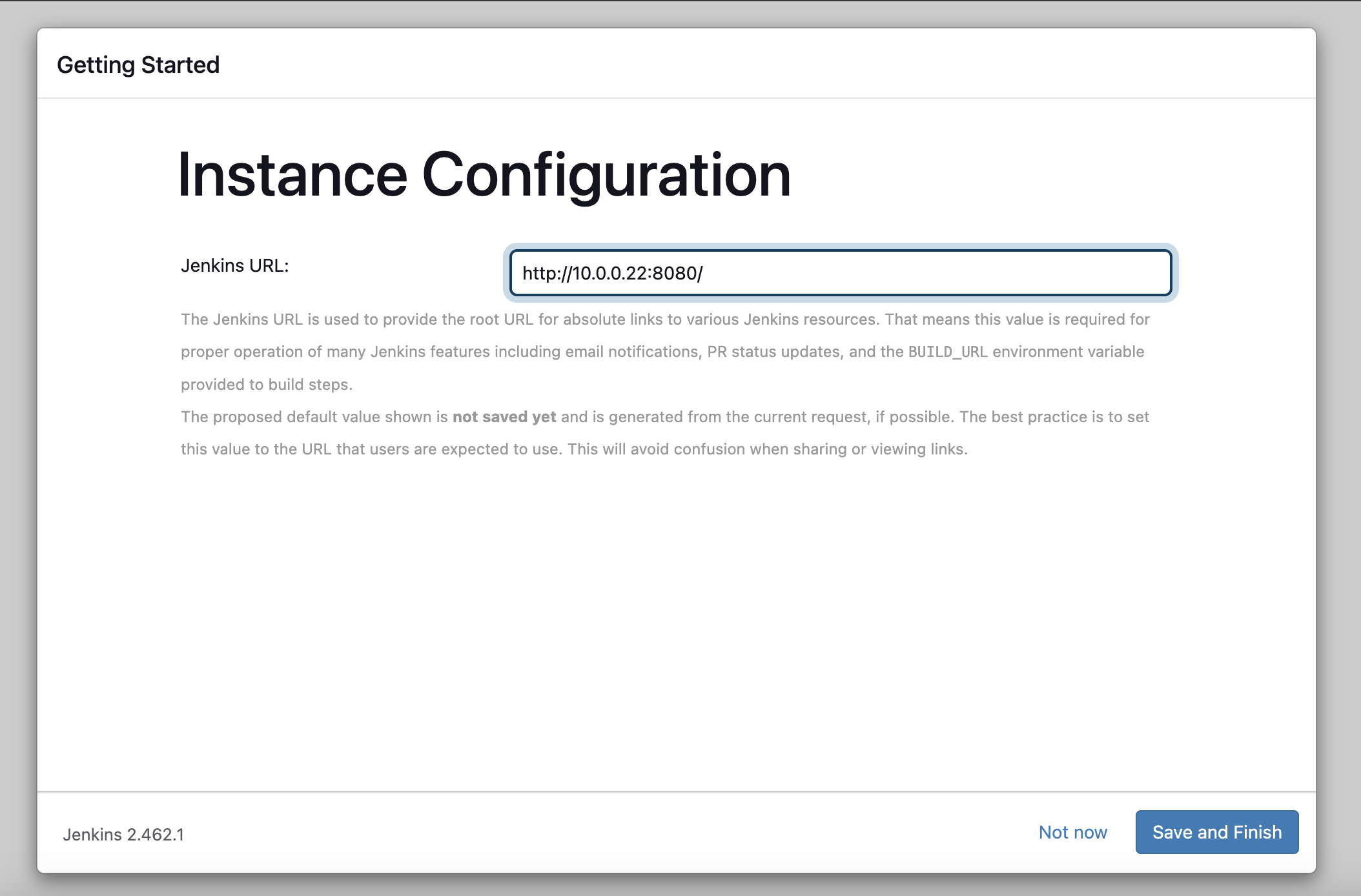

  1. Configure Instance IP

  • After you enter your admin information, set the URL IP address of your instance or press Not Now.

    Configure Instance

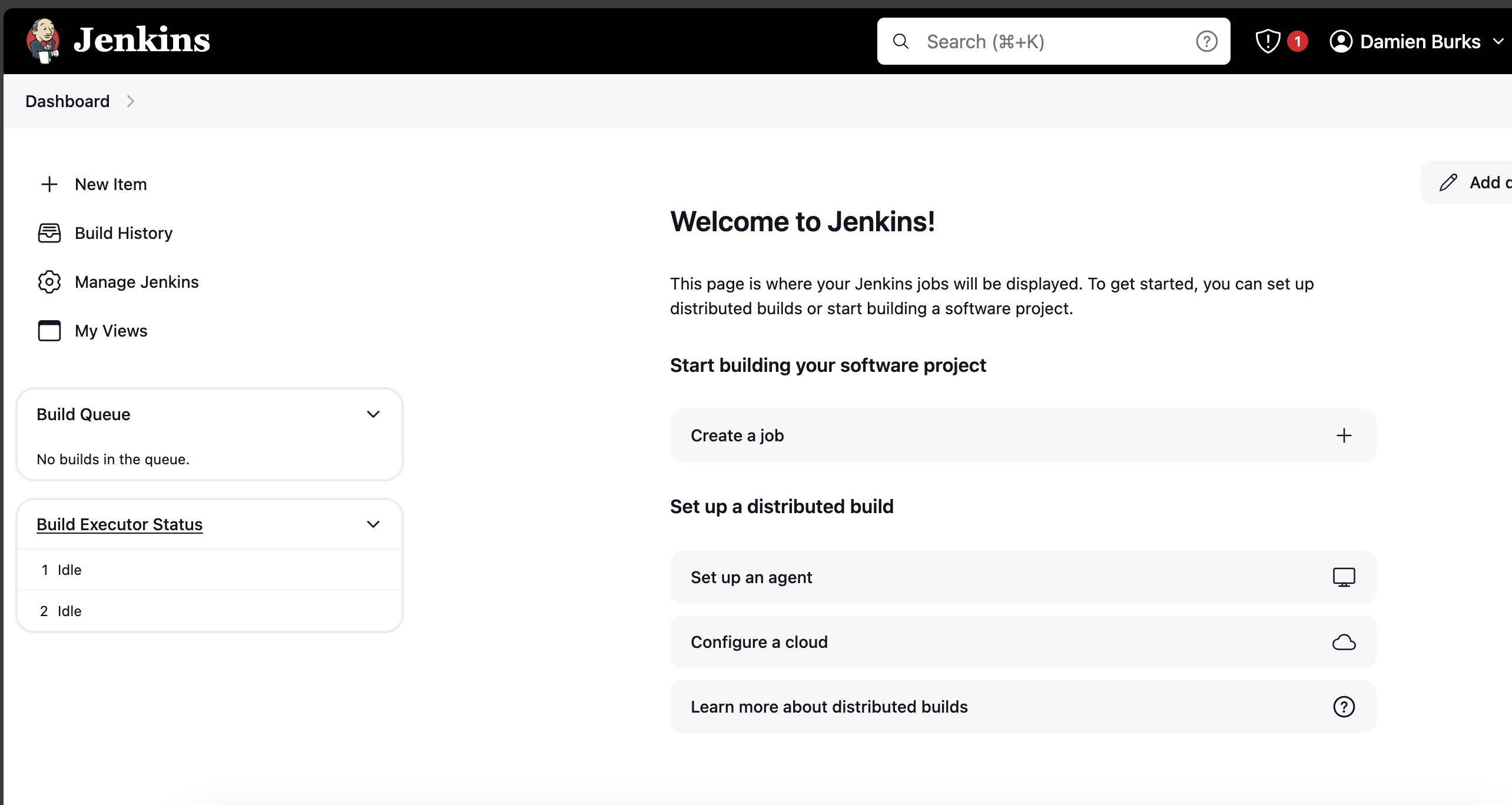

  1. Navigate to the home page

  • You should be here now.

    Home Page

Installing Jenkins Node​

This section covers installing and configuring a Jenkins node on dsb-node-01.

  1. Create Jenkins User

  • Create a Jenkins user and set appropriate permissions:

    sudo adduser jenkins
    sudo chown -R jenkins:jenkins /home/jenkins
    sudo chmod 755 /home/jenkins
    sudo usermod -aG docker jenkins
  1. Install Java

  • Install Java on the Jenkins node:

    sudo apt install openjdk-17-jre-headless

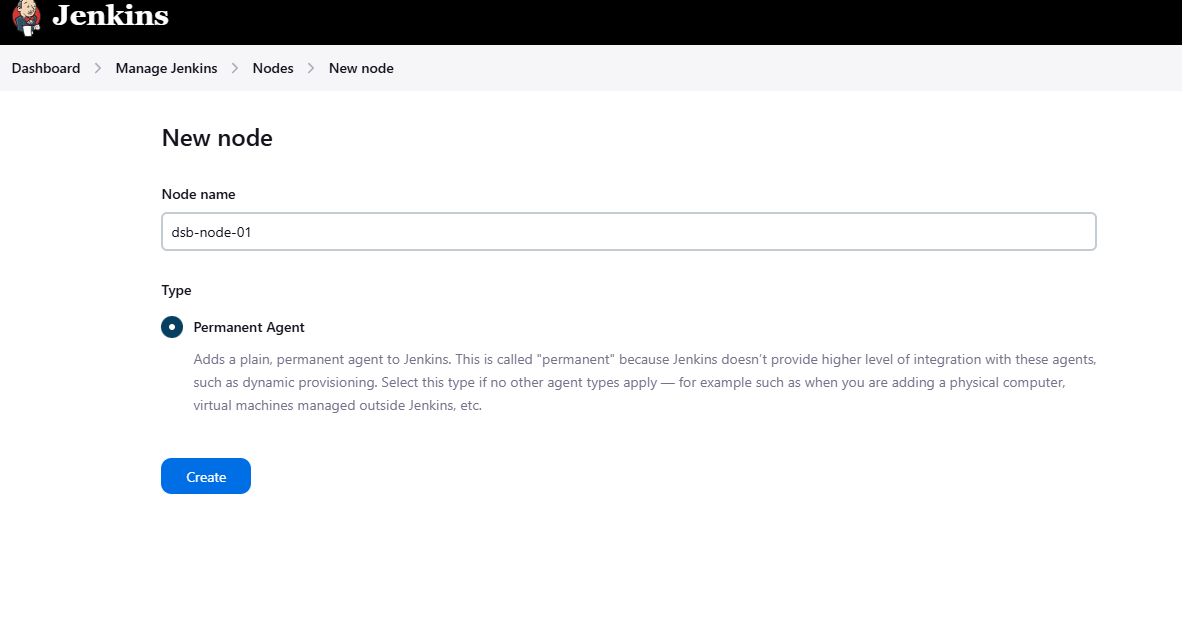

  1. Configure the Jenkins Node in Jenkins UI

  • In Jenkins UI, navigate to Dashboard > Manage Jenkins > Nodes. Click on New Node. Select Permanent Agent and click OK.

    Node Configuration

  • For your agent, configure the Remote root directory to /home/jenkins/agent and save the configuration.

  1. Configure Jenkins Security for Agents

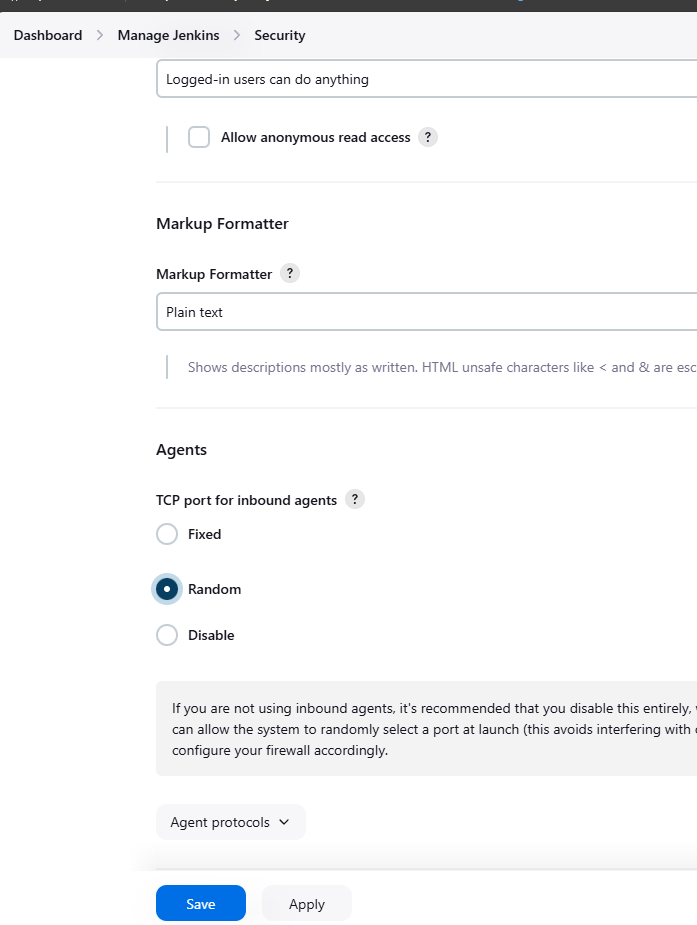

  • In Jenkins UI, navigate to Dashboard > Manage Jenkins > Security, and scroll down until you see TCP ports for inbound agents. Select Random. Apply/Save.

    Security Configuration

  1. Set Up the Jenkins Node

  • On dsb-node-01, create the agent directory:

    cd /home/jenkins && mkdir agent

  • Download the Jenkins agent JAR file:

    wget http://<jenkins-server-url>/jnlpJars/agent.jar

  • Run the Jenkins agent:

    java -jar agent.jar -jnlpUrl http://<jenkins-server-url>/computer/<node-name>/slave-agent.jnlp -secret <secret-key> -workDir "/home/jenkins/agent"

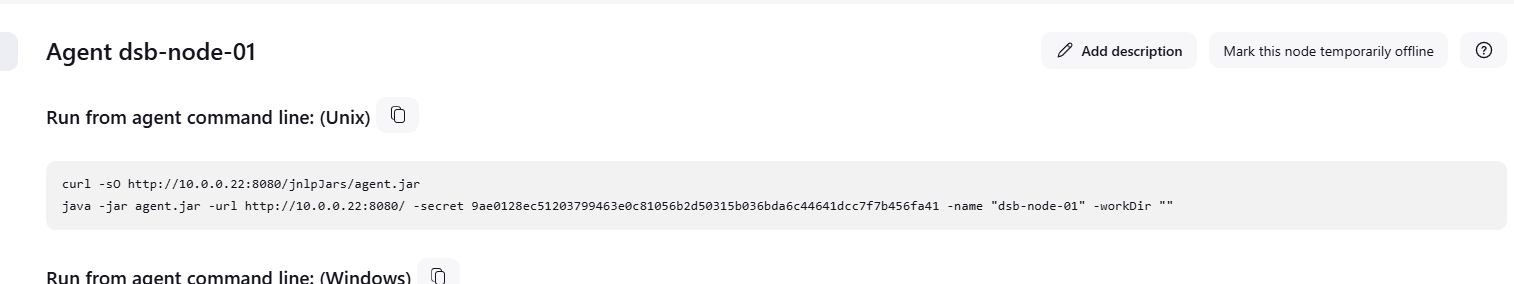

NOTE: You can find the secret key on the Jenkins node configuration page.

Secret Key Location

  1. Create a Systemd Service for the Jenkins Agent

  • Create a new systemd service for the Jenkins agent:

    sudo nano /etc/systemd/system/jenkins-agent.service

  • Add the following configuration to the service file:

    [Unit]
    Description=Jenkins Agent

    [Service]
    User=jenkins
    Group=jenkins
    ExecStart=/usr/bin/java -jar /home/jenkins/agent/agent.jar -jnlpUrl http://<jenkins-server-url>/computer/<node-name>/slave-agent.jnlp -secret <secret-key> -workDir /home/jenkins/agent
    Restart=always

    [Install]
    WantedBy=multi-user.target

  • Reload systemd and start the Jenkins agent service:

    sudo systemctl daemon-reload
    sudo systemctl start jenkins-agent
    sudo systemctl enable jenkins-agent

You're Done​

You're finished setting up Jenkins on your machine!
